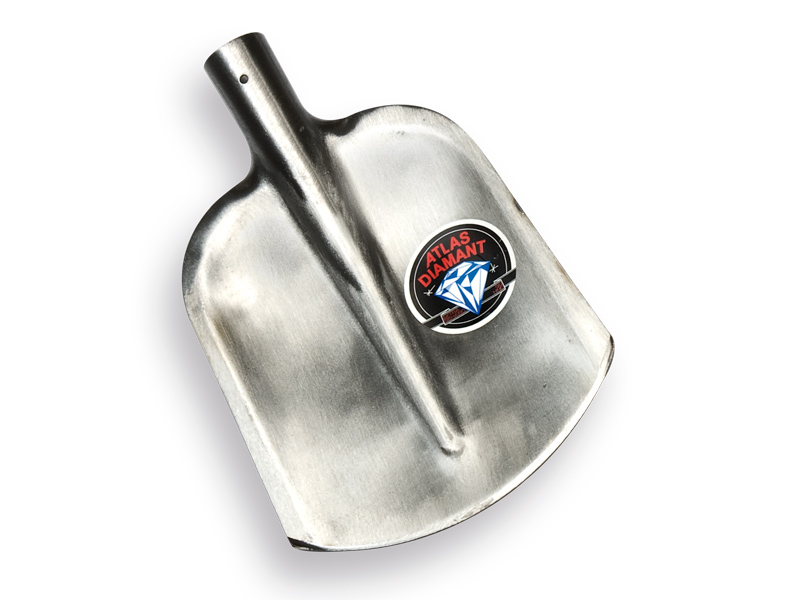

Polished Atlas Diamond Shovel Drents model with a straight socket angle.

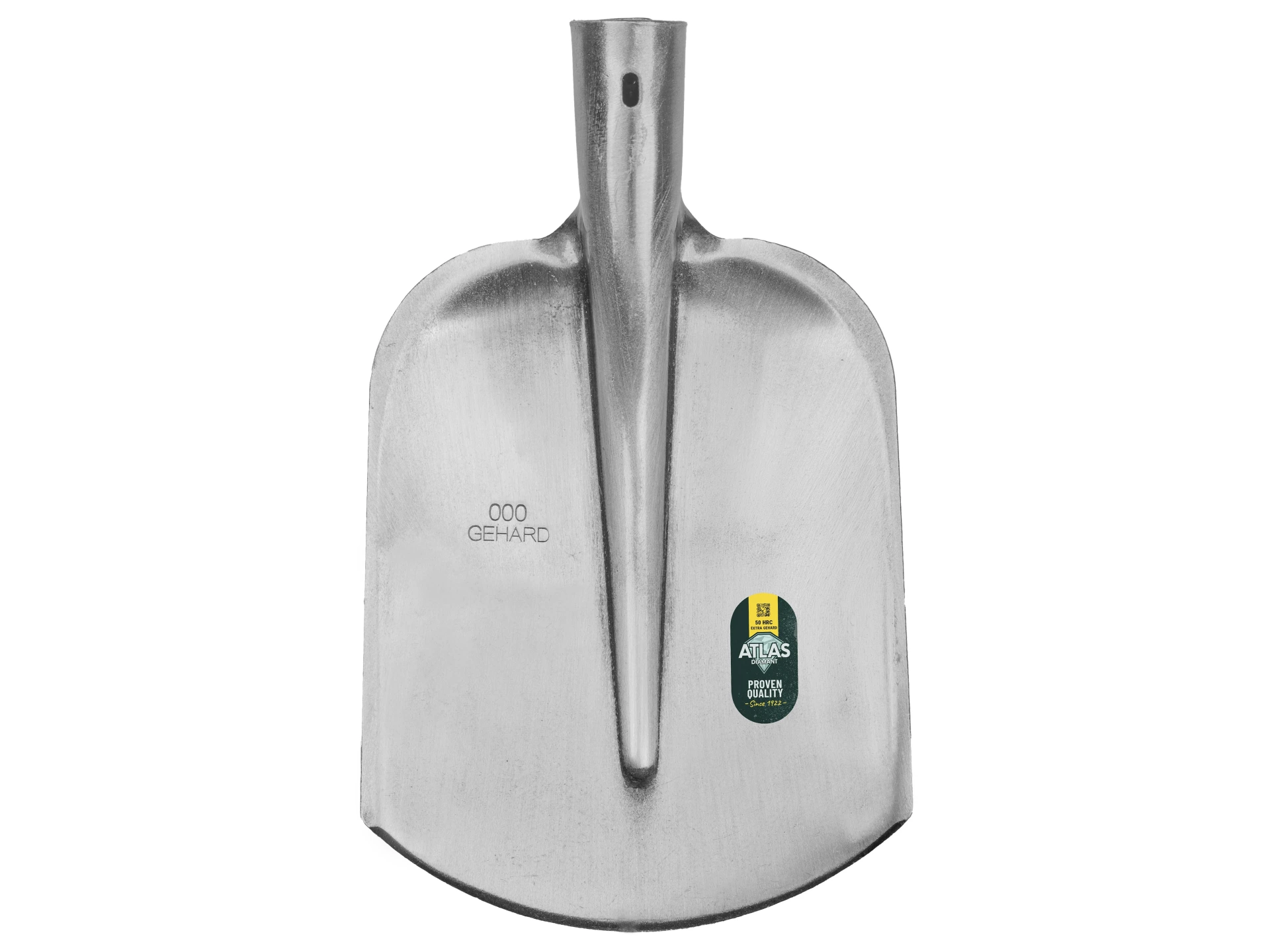

Digging shovel ATLAS DIAMANT, Drents model with a straight socket angle and blade size 000, is supplied without a handle. The blank polished blade is hardened and has a sharp cutting edge. This separate shovel can be combined with various ATLAS gooseneck shovel handles, shovel handles, or shovel handles.
Explanation of socket angle
The socket angle indicates the angle relative to the blade. The higher the socket angle, the more angled the socket is. This determines whether a shovel or shovel is designed for digging or scooping. The socket angle is measured from the ground to the socket, when the blade lies flat on the ground.
Straight: the handle is almost straight in line with the blade
1/4: the socket is bent up 35 mm, for example for digging shovels
1/2: the socket is bent up 55 mm, for example for scoop shovels and concrete shovels
3/4: the socket is bent up 70cm, for example with scoop shovels and deep shovels
Explanation of blade width
In the past, there were blade widths ranging from number 2 down to 0, with 2 being the largest. Over time, the blades had to become smaller due to working conditions, and smaller sizes were introduced.
The blade sizes for shovels and shovels, from large to small, are: 2 – 1 – 0 – 00 – 000
