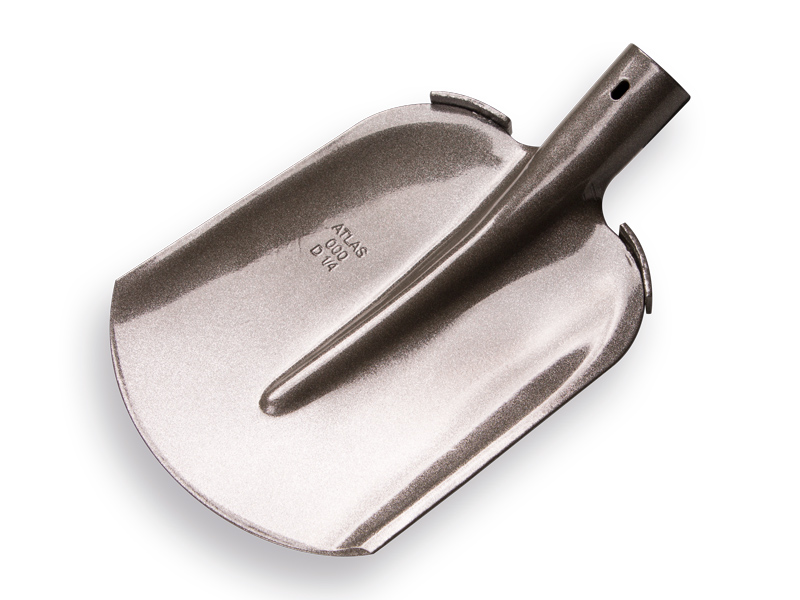

Digging shovel ATLAS, Drenthe model with socket position 1/4 bent and blade size 000, supplied without handle. The lacquered blade is hardened and has a flat bent step. Thanks to the step, footwear is not damaged.
Explanation of socket position
The socket position indicates the angle relative to the blade. The higher the socket position, the more angled the socket is. This determines whether a shovel or digging shovel is designed for digging or scooping. The socket position is measured from the ground to the socket when the blade lies flat on the ground.
Straight: the handle is almost straight on the blade
1/4: the socket is bent 35 mm, for example for digging shovels
1/2: the socket is bent 55 mm, for example for scoop shovels and concrete shovels
3/4: the socket is bent 70cm, for example for scoop shovels and deep shovels
Explanation of blade width
In the past, there were blade widths ranging from number 2 to 0, with 2 being the largest. Over time, the blades had to become smaller due to working conditions, and smaller sizes were introduced.
The blade sizes for shovels and shovels range from large to small: 2 – 1 – 0 – 00 – 000
